The

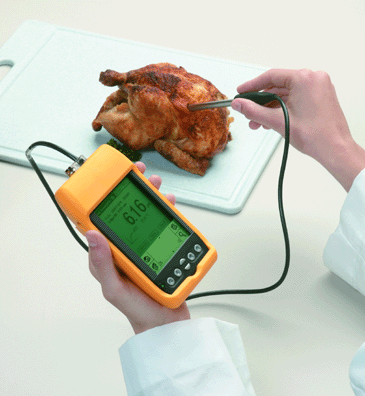

IQ400 pH system is both pH meter and handheld computer.
The meter accepts both glass and non-glass electrodes. The
meter is easy to use and features touch screens, pop-up windows
and on-screen help tips and troubleshooting guides for each
function. The "eDoodle", a virtual sticky note,
allows you to save handwritten notes and sketches with your pH
readings. You can run all Palm OS applications, such as
advanced scientific calculators and spreadsheets. You can
download saved records to your computer with the push of a
button.
Features include hi/ low pH level alerts, recalibration alarms, automatic buffer recognition, save/ recall of up to 9999 records, automatic buffer recognition, and user selectable buffer values. |
PROBE SELECTIONS:
(all probes are interchangeable with the IQ150 pH system)
 |
Stainless steel pH probe with ISFET silicon chip pH sensor. The virtually unbreakable ISFET pH sensor stores dry and requires no maintenance. Excellent general purpose pH probe. Often used for liquids, viscous samples, penetration of semi-solids and surface measurements. Easy cleaning with a toothbrush and detergent. Part No. PH77-SS |
|
 |
Part No. PH17-SS |
|
 |
|
|
|
8Stainless steel piercing tip micro pH probe and is ideal for applications that require minimal evidence of piercing. ISFET sensor stores dry, requires no maintenance and is easy to clean. Part No. PH37-SS |
|
 |
NMR Tube probe. This probe is the same as our micro probe except that the smaller section is extended to a length of approximately 20 cm (8 in). This allows the probe to be inserted into an NMR tube container to measure the sample at the bottom of the tube. Immersion depth needs to be approximately 2mm. Part No. PH47-SS |
|
 |
Rugged epoxy bodied, glass bulb pH sensor. Built-in temperature sensor. A low-cost, general purpose pH electrode with high accuracy and reliability. Part No. PH30-GS |
|
 |
Standard ORP probe (BNC connector, 1m lead, 12x110mm barrel, platinum band). Part No. ORP110-GS |
|
 |
Heavy duty graphite bodied pH probe with glass bulb sensor. This portable pH probe is designed after the toughest in-line process analytical sensors. This pH probe is ideal for long term immersion, high temperatures or samples that tend to foul electrodes. A huge double junction reference has a large surface area resistant to fouling. Part No. PH40-GS |
ACCESSORIES:
 |
Set of three 500 mL bottles of
calibrating buffers. Includes one each of pH 4.00, 7.00, 10.00 and a
non-ionic surfactant electrode rinse. |
 |
Recharging station with two sets of nickel-metal hydride (NiMH) batteries. Save money and extend the operating time of your handheld computer with NiMH rechargeable batteries. Part No. RC20 |
 |
This is the ideal field/travel case, constructed from weather-resistant Cordura. It comes with a compact set of calibrating buffers, a pen/stylus holder, extra battery pouches, and a padded lining for extra protection. The case also features several zipper utility pockets that allow for extra items like pens, business cards, and keys. Part No. CC20 |
SPECIFICATIONS FOR IQ400 pH SYSTEM:
| Meter |
pH/ mV/ORP System
complete with |
| Range: pH mV Temperature, C |
|
| Resolution: pH mV Temperature, C |
|
|
Accuracy: |
± 0.01 pH |
| Display | 160 X 160 Touch Screen |
| Temp Compensation | Automatic -5 oC to +105 oC |
| Buffers | Automatic Recognition. 18 buffers in memory. 1.68, 2.00, 3.00 4.00, 4.01, 5.00, 6.00, 6.86, 7.00, 7.41, 8.00 9.00, 9.18, 9.21, 10.00, 10.01, 12.00, 12.45. User selectable to any other value |
| Save/ Recall | Save up to 9999 readings with attached notes and drawings. |
| GLP Functions | Stores last 50 calibrations |
| Power |
pH
module: two
AAA (included) |
| Battery Life | 10 hours continuous (computer) 100 hours continuous (module) Low battery warning |
| Dimensions | 3.0" x 6.0" ( 76mm x 152 mm) handheld computer with pH module attached |
| Shipping Weight | 3.0 lbs. (1.3 kg) |
![[Section Divider]](wave.gif){kind=small}
IQ150 pH/mV/Temperature
System
"Dual technology" ISFET pH meter accepts both
non-glass and traditional glass pH electrodes
|
|
Features include recognition of 7 buffers, 0.1 or 0.01 pH resolution, automatic or manual temperature compensation, and one-point or two- point calibration. The ultra-rugged pH meter is armored in a water-resistant rubber holster and is engineered to withstand a 10-foot drop onto concrete. From the beginner to the demanding professional researcher, the IQ150 ISFET pH meter offers precision with ease of use. |
PROBE SELECTIONS:
|
Stainless steel pH probe with ISFET silicon chip pH sensor. The virtually unbreakable ISFET pH sensor stores dry and requires no maintenance. Excellent general purpose pH probe. Often used for liquids, viscous samples, penetration of semi-solids and surface measurements. Easy cleaning with a toothbrush and detergent. Part No. PH07-SS |
|
|
Part No. PH17-SS |
|
|
|
|
 |
Stainless steel micro pH probe with piercing tip. The tip is 3.8mm in diameter and is ideal for applications that require minimal evidence of piercing. ISFET sensor stores dry, requires no maintenance and is easy to clean. Part No. PH37-SS |
|
|
NMR Tube probe. This probe is the same as our micro probe except that the 3.5mm section is extended to a length of approximately 20 cm (8 in). This allows the probe to be inserted into an NMR tube container to measure the sample at the bottom of the tube. Immersion depth needs to be approximately 2mm. Part No. PH47-SS |
|
|
Rugged epoxy bodied, glass bulb pH sensor. Built-in temperature sensor. A low-cost, general purpose pH electrode with high accuracy and reliability. Part No. PH30-GS |
|
|
Heavy duty graphite bodied pH probe with glass bulb sensor. This portable pH probe is designed after the toughest in-line process analytical sensors. This pH probe is ideal for long term immersion, high temperatures or samples that tend to foul electrodes. A huge double junction reference has a large surface area resistant to fouling. Part No. PH40-GS |
ACCESSORIES:
500 ml bottle of Probe Cleaning Solution.
Pepsin cleaning solution for removal of Protein Deposits.
Set of three 500 mL bottles of
calibrating buffers. Includes one each of pH 4.00, 7.00, 10.00 and a
non-ionic surfactant electrode rinse.
Field carrying case with calibrating kit.
Padded, water-resistant nylon fabric covering.
Shoulder strap, calibrating buffers and
window pocket for operator’s manual.
Part No. CC10
NO PHOTO AVAILABLE
Part No. PCS50
Part No. CB30
SPECIFICATIONS FOR IQ150 HANDHELD ISFET pH METER:
Meter IQ150 pH/mV/Temperature Choose from the selection of
ISFET non-glass sensors with stainless steel pH probes and traditional glass
pH electrodes.
0.00 to 14.00 pH
0.1 or 0.01 pH
± 0.01 pH Display 3-1/2 digit LCD Temperature Compensation Manual or Automatic 0 oC to
+100 oC Power 9 V (included) Battery life 200 hours continuous/ 10 hour advance low
battery warning Dimensions 3.5" W x 7" H x 1.5"
D
(90mm x 180mm x 40mm) Ship Weight 3.0 lbs. (1.3 kg)
Dual Technology pH Meter accepts stainless steel non-glass pH probes or
traditional glass pH electrodes. Shock resistant holster and multiple
language operator's manual included.
Probe
Range
± 1999 mV
0 to +100 oC (oC or oF
Display)
Resolution
0.1or 1.0 mV
0.1 oC
Accuracy
± 0.1 mV
± 0.5 oC
120V or 240V AC adapter (optional)
IQ240 pH/ mV/Temperature
System
Benchtop/ Portable pH meter
with Non-Glass, ISFET Sensor Probe
 |
Features include: Auto buffer recognition
of 9 buffers, .1/.01/.001 pH resolution, one-, two- or three- point calibration, Memory/
Recall of 20 data sets, and Windows SmartLogger software for uploading time,
date, pH, temperature, and mV readings to your PC. Both an AC
adapter for
desktop operation and a 9v battery for portability are included. |
pH PROBE SELECTIONS:
 |
Stainless steel pH probe
with ISFET silicon chip sensor for general pH
testing. The virtually unbreakable ISFET sensor requires no maintenance and stores dry.
Easy cleaning with a toothbrush and detergent. Part No. PH06-SS |
|
|
|
Stainless steel micro pH probe. This pH probe is 3.5mm in diameter and requires
only 2mm immersion to obtain a stable
reading. Includes all the same features as the general purpose pH probe.
Part No. PH16-SS |
|
 |
Stainless steel pH probe with ISFET silicon chip
sensor. Heavy duty handle for meat piercing applications. Part No. PH26-SS |
|
 |
Stainless steel, ISFET micro probe with piercing tip. The tip is 3.8mm in diameter and is ideal for applications that require minimal evidence of piercing. ISFET sensor stores dry, requires no maintenance and is easy to clean. Part No. PH36-SS |
|
 |
NMR Tube probe. This probe is the same as our micro probe except that the 3.5mm section is extended to a length of approximately 20cm (8 in). This allows the probe to be inserted into an NMR tube container to measure the sample at the bottom of the tube. Immersion depth needs to be approximately 2mm. Part No. PH46-SS |
|
|
Set of three 500 mL bottles of calibrating buffers. Includes one each of pH 4.00, 7.00, 10.00 and a non-ionic surfactant electrode rinse. Part No. CB30
|
|
 |
Tape Printer kit for
the IQ240 pH meter Part No. PP10-01 |
|
NO PHOTO AVAILABLE |
SmartLogger(R) from IQ Scientific Instruments
Full-featured datalogger software for the IQ240 pH meter system *"X" and "Y" axis scrolling *Selectable graph display width *Zoom box for magnified data views *Auto appends to an existing data file *Charts data samples in 10 second intervals *Selectable TAB or Comma delimited data file *Logs pH, Temperature in degrees Celsius, Start date and time *Marker capability similar to an ink-and-paper strip chart recorder *Selectable logging interval (10 to 300 seconds) in 10 second increments Part No. PP10-01 |
SPECIFICATIONS FOR IQ240 BENCHTOP pH METER:
|
IQ240-06 |
|
|
Item |
pH/mV/Temperature Meter |
|
Probe Type |
Stainless steel with ISFET silicon chip pH
sensor. |
|
|
0.00 to 14.00 pH |
|
|
0.1/0.01/0.001 pH |
|
|
± 0.01 pH |
|
Buffer Recognition |
Automatic nine buffers (1.68, 4.00, 6.86,
7.00, 7.41, 9.18, |
|
Temperature Compensation |
Automatic |
|
Memory |
20 data sets |
|
Outputs |
RS 232 & Analog Recorder |
|
Display |
LCD, simultaneous pH and oC |
|
Power |
120VAC or 240VAC adapter
(specify) and |
|
Dimensions |
6.5" W x 2.0" H x 4.5" D (165mm x 50mm x 115mm) |
|
Shipping Weight |
3.0 lbs. (1.3 kg) |
miniLab pH Series IQ 120 & IQ 125
Professional
New waterproof, pocket-sized pH meters
with non-glass ISFET pH sensors
 |
The IQ 120 and IQ 125 compact, waterproof non-glass pH meters are not designed to be disposable- they are designed to last. They feature advanced ISFET silicon chip pH sensors that provide stable readings in seconds. Only 5 ½" long, these ISFET meters fit right into your pocket. The virtually unbreakable ISFET sensors eliminate the problems of delicate glass sensors that are found on other pocket-sized pH meters. The silicon chip ISFET sensors store dry and need no maintenance. A toothbrush and detergent are all you need to clean dirty sensor surfaces. Use the Model IQ 120 pH meter with convenient one-point calibration for routine pH testing. The Model IQ 125 Professional pH meter features automatic buffer recognition and one-point, two-point or three-point calibration for high accuracy over a wide range of pH values. Both pH meter models have automatic temperature compensation for increased accuracy. The miniLab pocket-sized pH meters come with two replaceable watch batteries that provide over 200 hours of use. An automatic power off feature conserves energy and error messages alert you to a low battery condition or incorrect calibration. Other features include a replaceable reference electrode, retention of calibration after shutoff and the ability to measure samples as small as a single drop. |
ACCESSORIES FOR THE IQ120 & IQ125 NON-GLASS ISFET pH METERS:
|
|
Replacement reference electrode for the IQ120 and IQ125 pH meters. Part No. RF01-01 |
 |
miniLab nylon holster securely holds the pH meter and calibrating buffers for better convenience. Part No. BH10 |
|
Set of pH 7.00 calibrating buffer for the Model IQ120 pH meter. Includes one 6 mL dropper bottle and one 65 mL bottle for refill. Part No. CB40 |
 |
Set of pH 4.00, pH 7.00 and pH 10.00 calibrating buffers for the Model IQ125 pH meter. Includes three 6 mL dropper bottles and three 65 mL bottles for refill. Part No. CB45 |
SPECIFICATIONS FOR THE IQ120 & IQ125 ISFET pH meters:
|
Model |
miniLab IQ120 |
miniLab IQ125 |
|
Meter |
Pocket-sized, waterproof non-glass pH meter |
|
|
Sensor |
ISFET silicon chip pH sensor |
|
|
Calibration |
1 Point |
1, 2, or 3 Point |
|
Reference |
Replaceable KCl gel filled |
|
pH Range |
2.0 to 12.0 pH |
|
Resolution |
0.1 pH |
|
|
Accuracy |
± 0.1 pH |
|
|
Operating Temp. Range |
5 to 40oC |
|
|
Display |
LCD digital display (0.1 pH resolution) |
|
|
Temp. Compensation |
Automatic |
|
|
Power |
Two 3v lithium batteries CR2032 |
|
|
Battery life |
200 hours continuous/ 10 hour advance low battery warning. |
|
|
Dimensions |
5.5" W x 1.0" H x 5/8" D (142mm x 28mm x 15mm) |
|
|
Shipping weight |
1.0 lbs. (.45 kg) |
|
