DRUM, TANK & PLATFORM SCALES

  • For Weighing Corrosive Materials
  • Capacities to 10,000 lbs.
  • Digital
  • Low Profile Platform Design
  • Corrosion Resistant Construction
  • 5 Year Warranty
Scaletron's Tank & Drum Scales are designed to accurately measure the weight of corrosive chemicals such as fluoride, sodium hypochlorite, sodium hydroxide, sodium bisulfate, polymer, ammonia, phosphate, alum, caustic, sodium aluminate and other liquids or powders.

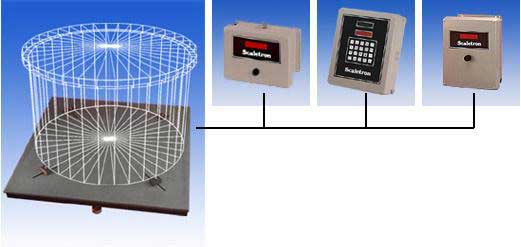

MODEL 4010™ TANK SCALE
  • Solid - state operation by a NTEP stainless steel temperature compensated strain gauge transducer
  • Electronics housed in NEMA 4x, UL approved enclosure to provide protection from acids
  • Independent weighing platform with digital liquid crystal display
  • Standard readability to 1 lb. (kg), 0.1 lb. (kg)
  • High accuracy of ± 0.5% of capacity
  • Readout in pounds or kilograms
  • Rugged steel construction protected by corrosion resistant finish with solid ½" PVC decking
  • Indicator can be locally or remote mounted up to 200 feet (61 meters) away
  • Measures weight of chemicals such as fluoride, sodium hypochlorite, sodium hydroxide, sodium bisulfate, polymers, ammonia, phosphate, alum, caustic, sodium aluminate or other liquids
  • Self-locking knob for adjusting tare weight
  • Output 4-20 mA signal for permanent recording or transmitting
  • The 4½ digit indicator also has 0-20mA and -8 to + 12 mA outputs standard. All three outputs are selectable as scale powered or loop powered
  • Standard low level contact closures on 4½ digit indicator
  • Model 1099™ Chemical Process Controller as optional indicator to create the Total Electronic SystemSM

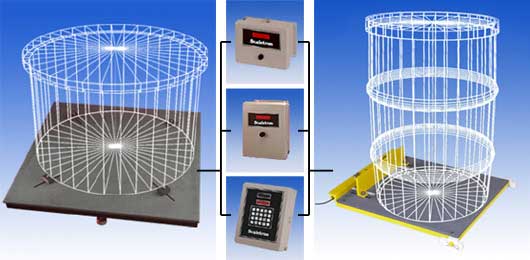

MODEL 4020™ DIGITAL DRUM AND CYLINDER SCALE
  • Solid - state operation by strain gauge transducer
  • Electronics housed in NEMA 4x, UL approved enclosure
    to provide protection from acids
  • Low profile platform design increases safety and ease of cylinder and drum handling
  • Standard readability to 1 lb. (kg), 0.1 lb. (kg)
  • High accuracy of ± 0.5% of capacity
  • Readout in pounds or kilograms
  • Corrosion resistant, solid PVC base construction
  • Measures weight of chemicals such as fluoride, sodium hypochlorite, sodium hydroxide, sodium bisulfate, polymer, ammonia, phosphate, alum, caustic, sodium aluminate or other liquids or powder
  • Self-locking knob for adjusting tare weight
  • Output 4-20 mA output signal for permanent recording
    or transmitting
  • The 4½ digit indicator also has 0-20 mA and -8 to +12 mA outputs standard. All three outputs are selectable as scale powered or loop powered
  • 2 Low level relay contact closures standard on 4½ digit indicator
  • Model 1099™ Chemical Process Controller as optional indicator to create the Total Electronic SystemSM
  • Patented

The Model 4020™ Drum Scale is specially designed for weighing corrosive materials. The drum can be placed anywhere on the platform and still be weighed accurately. The low profile (1.5") provides added safety and ease of drum handling. Loading and unloading drums can be accomplished by rolling and tilting onto the scale or by using a hand truck. The 12" diameter scale can be used to weigh liquified chlorine, sulfur dioxide, ammonia, hydrogen chloride, or carbon dioxide packaged in carboys. The 16" diameter scale can also be used to weigh ammonia cylinders as well as drums and daytanks. The base is solid PVC with a dry powder polyester plastic coated steel plate under the disk on the 16" and 19" scales. All hardware is stainless steel.

Three indicators are available for this scale; all are mounted in NEMA 4x, UL approved enclosures. The standard indicator is a 3½ digit liquid crystal display, LCD, with 4-20mA output. This display can read up to 199.9 lbs. or kgs. When substance to be weighed is between 200 and 1000 lbs., this indicator is calibrated to display in 1 lb. ( or kg.) increments. The optional indicator with 4½ digit LED display can display 1000.0 lbs. by one tenth of a pound increments. It has both active and passive 4-20 mA output. There are two adjustable low level set points. The Model 1099™ Chemical Process Controller is also available on this base, which allows the user to combine different bases to create a customized Total Electronic SystemSM. Please contact the factory for literature on the Model 1099™ Chemical Process Controller.

All of our indicators can be calibrated in pounds or kilograms.

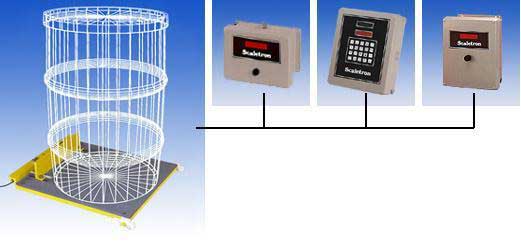

MODEL 4021™ ULTRA LOW PROFILE DRUM SCALE
  • Solid state operation by a NTEP stainless steel temperature compensated strain gauge transducer
  • Electronics housed in a NEMA 4x, UL approved enclosure to provide protection from acids
  • Ultra-low profile platform design increases safety and ease of drum handling
  • Standard readability to 1 lb. (kg), 0.1 lb. (kg.)
  • High accuracy of up to + 0.1%
  • Readout in pounds or kilogram
  • Rugged steel construction protected by a corrosion resistant finish, with solid ½" PVC decking
  • Indicator can be locally or remote mounted up to 200 ft. (61 meters) away
  • Measures weight of chemicals such as, flouride, sodium hypochlorite, sodium hydroxide, sodium bisulfate, polymers, ammonia, phosphate, alum, caustic, sodium aluminate, or other liquids or powders
  • Self-locking knob for adjusting tare weight
  • Output 4-20mA signal for permanent recording
    or transmitting
  • The 4-1/2 digit indicator also has 0-20mA and -8 to +12 mA outputs standard. All three outputs are selectable as scale powered or loop powered
  • Standard low level contact closures on 4-1/2 digit indicator
  • Model 1099™ Chemical Process Controller as optional indicator to create the Total Electronic SystemSM

The Model 4021™ Ultra Low Profile Drum Scale is specially designed for weighing corrosive materials. The base has rugged polyester dry powder coated steel frame for on and off loading of drums. All steel parts are coated with a corrosion resistant finish. Hardware is stainless steel. The PVC decking provides a buffer between the steel frame and drums to protect the frame from scratches. A rugged steel backstop helps to align the centering mark for the drum. The platform of the Model 4021™ can accommodate drums from 18 inches to 26 inches in diameter by adjusting the heavy duty backstop. For operation, the scale employs a NTEP stainless steel temperature compensated strain gauge transducer. It offers high accuracy of + 0.5% of capacity.

Three indicators are available for the Model 4021™ Ultra Low Profile Drum Scale. All are mounted in a NEMA 4x, UL approved enclosures. The standard indicator is the 3 1/2 Digit with liquid crystal display(LCD), and standard 4-20 mA output. Display reads either 0.1 lb./kg. to 199.9 lbs./kg., or 1.0 lb./kg. to 1500 lbs./680 kg. Optional indicators include the 4 1/2 Digit, LED indicator with standard active and passive 4 -20 mA output and two low level relay contacts. This display has a resolution of 1500 lbs.(680 kg.)

The Model 1099™ Chemical Process Controller is also available on this base, which allows for the user to combine different bases to create a customized Total Electronic System SM. Please contact the factory for literature on the Model 1099™ Chemical Process Controller.

All of our indicators can be calibrated in pounds or kilograms.

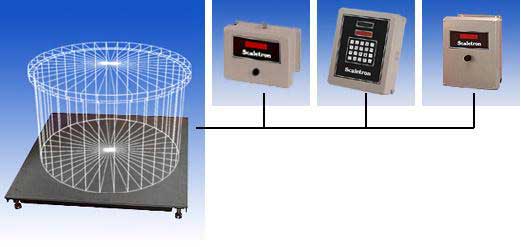

MODEL 4030™ TANK SCALE
  • Solid - state operation by NTEP stainless steel temperature compensated strain gauge transducers
  • Electronics housed in NEMA 4x, UL approved enclosure to provide protection from acids
  • Independent weighing platform with digital liquid crystal display
  • Standard readability to 1 lb. (kg), 0.1 lb. (kg)
  • High accuracy of ± 0.5% of capacity
  • Readout in pounds or kilograms
  • Rugged steel construction protected by corrosion resistant finish, with solid ½" PVC decking
  • Indicator can be locally or remote mounted up to 200 feet (61 meters) away
  • Measures weight of chemicals such as fluoride, sodium hypochlorite, sodium hydroxide, sodium bisulfate, polymers, ammonia, phosphate, alum, caustic, sodium aluminate or other liquids
  • Self-locking knob for adjusting tare weight
  • Output 4-20 mA signal for permanent recording or transmitting
  • The 4½ digit indicator also has 0-20mA and -8 to + 12 mA outputs standard. All three outputs are selectable as scale powered or loop powered
  • Standard low level contact closures on 4½ digit indicator
  • Model 1099™ Chemical Process Controller as optional indicator to create the Total Electronic SystemSM

The Model 4030™ Tank Scale is designed specifically for occasional on and off loading of tanks or drums. Off center loading of solid ingredients does not affect scale accuracy. Mixers and pumps can also be used with this scale.

This tank scale combines solid-state operation with a highly functional design. The platform has sturdy three-point suspension and is built ruggedly for use in harsh environments. The scale base is made of corrosion resistant dry powder polyester plastic coated steel. A ½" thick PVC deck on top of a steel frame provides added protection from corrosion.
Various standard capacities are available, from 1000 to 5000 lbs. Custom capacities are also available. For operation, the scale employs NTEP stainless steel temperature compensated strain gauge transducers. It offers high accuracy of ± 0.5% of capacity.

Three indicators are available for this scale; all are mounted in NEMA 4x, UL approved enclosures. The standard indicator is a 3½ digit liquid crystal display, LCD, with 4-20mA output. This display can read up to 199.9 lbs. or kgs. When substance to be weighed is between 200 and 1000 lbs., this indicator is calibrated to display in 1 lb. ( or kg.) increments. The optional indicator with 4½ digit LED display can display 5000 lbs. by 1 lb. (or kg.) increments. It has both active and passive 4-20 mA outputs and there are two adjustable low level set points. The Model 1099™ Chemical Process Controller is also available on this base, which allows the user to combine different bases to create a customized Total Electronic SystemSM. Please contact the factory for literature on the Model 1099™ Chemical Process Controller.

All of our indicators can be calibrated in pounds or kilograms.

MODEL 4040™ PLATFORM SCALE
  • Solid - state operation by NTEP stainless steel temperature compensated strain gauge transducers
  • Electronics housed in NEMA 4x, UL approved enclosure to provide protection from acids
  • Independent weighing platform with digital liquid crystal display
  • Standard readability to 1 lb. (kg), 0.1 lb. (kg)
  • High accuracy of ± 0.5% of capacity
  • Readout in pounds or kilograms
  • Rugged steel construction protected by corrosion resistant finish, with solid ½" PVC decking
  • Indicator can be locally or remote mounted up to 200 feet (61 meters) away
  • Measures weight of chemicals such as fluoride, sodium hypochlorite, sodium hydroxide, sodium bisulfate, polymers, ammonia, phosphate, alum, caustic, sodium aluminate or other liquids
  • Self-locking knob for adjusting tare weight
  • Output 4-20 mA signal for permanent recording or transmitting
  • The 4½ digit indicator also has 0-20mA and -8 to + 12 mA outputs standard. All three outputs are selectable as scale powered or loop powered
  • Standard low level contact closures on 4½ digit indicator
  • Model 1099™ Chemical Process Controller as optional indicator to create the Total Electronic SystemSM

The Model 4040™ Platform Scale is ruggedly designed, specifically for frequent on and off loading. The load being weighed may be placed anywhere on the platform, without affecting the accuracy of the scale.

This platform scale combines solid-state operation with a highly functional design. The platform has sturdy three-point suspension and is built ruggedly for use in harsh environments. The scale base is made of corrosion resistant dry powder polyester plastic coated steel. A ½" thick PVC deck on top of a steel frame provides added protection from corrosion.

Various standard capacities are available, from 1000 to 5000 lbs. Custom capacities are also available. For operation, the scale employs NTEP stainless steel temperature compensated strain gauge transducers. It offers high accuracy of ± 0.5% of capacity.

Three indicators are available for this scale; all are mounted in NEMA 4x, UL approved enclosures. The standard indicator is a 3½ digit liquid crystal display, LCD, with 4-20mA output. This display can read up to 199.9 lbs. or kgs. When substance to be weighed is between 200 and 1000 lbs., this indicator is calibrated to display in 1 lb. ( or kg.) increments. The optional indicator with 4½ digit LED display can display 5000 lbs. by 1 lb. (or kg.) increments. It has both active and passive 4-20 mA outputs and there are two adjustable low level set points. The Model 1099™ Chemical Process Controller is also available on this base, which allows the user to combine different bases to create a customized Total Electronic SystemSM. Please contact the factory for literature on the Model 1099™ Chemical Process Controller.

All of our indicators can be calibrated in pounds or kilograms.

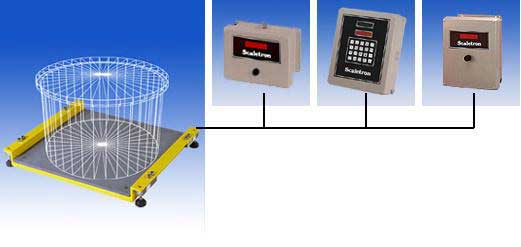

MODEL 4041 ™ ULTRA LOW PROFILE PLATFORM SCALE
  • Solid state operation by NTEP stainless steel temperature compensated strain gauge transducer
  • Electronics housed in a NEMA 4x, UL approved enclosure to provide protection from acids
  • Ultra-low profile platform design increases safety and ease of drum handling
  • Standard readability to 1 lb. (kg), 0.1 lb. (kg.)
  • High accuracy of up to + 0.1%
  • Readout in pounds or kilograms
  • Rugged steel construction protected by corrosion resistant finish, with solid ½" PVC decking
  • Designed for on and off loading
  • Indicator can be locally or remote mounted up to 200 ft. (61 meters) away
  • Measures weight of chemicals such as fluoride, sodium hypochlorite, sodium hydroxide, sodium bisulfate, polymers, ammonia, phosphate, alum, caustic, sodium aluminate or other liquids
  • Self-locking knob for adjusting tare weight
  • Output 4-20 mA signal for permanent recording or transmitting
  • The 4½ digit indicator also has 0-20mA and -8 to + 12 mA outputs standard. All three outputs are selectable as scale powered or loop powered
  • Standard low level contact closures on 4½ digit indicator
  • Model 1099™ Chemical Process Controller as optional indicator to create the Total Electronic SystemSM

The Model 4041™ Ultra Low Profile Platform Scale is specially designed for weighing corrosive materials. The base has a rugged polyester dry powder coated steel frame with sturdy four point suspension. This design allows for on and off loading on a regular basis. Hardware is stainless steel. The PVC decking provides a buffer between the steel frame and load to protect the frame from scratches. Loads may be placed anywhere on the platform for accurate reading. For operation, the scale employs a NTEP stainless steel temperature compensated strain gauge transducers. It offers high accuracy of + 0.5% of capacity. The platform of the Model 4041™ is available in two sizes; one can accommodate loads up to 24" x 24" and the other 30" x 30". Tote bins, dry powder feeders, cylinders, and drums can all be weighed accurately on this model scale.

Three indicators are available for the Model 4041™ Ultra Low Profile Platform Scale. All are mounted in a NEMA 4x, UL approved enclosures. The standard indicator is the 3½ Digit with liquid crystal display(LCD), and standard 4-20 mA output. Display reads either 0.1 lb./kg. to 199.9 lbs./kg, or 1.0 lb./kg. for weights 200 lbs./kg. to 1500 lbs./680 kg. Optional indicators include the 4½ Digit, LED indicator with standard active and passive 4 - 20mA output and two low level relay contacts. This display has a resolution of 1500 lbs.(680 kg.). The Model 1099™ Chemical Process Controller is also available on this base, which allows the user to combine different bases to create a customized Total Electronic System SM. Please contact the factory for literature on the Model 1099™ Chemical Process Controller.

All of our indicators can be calibrated in pounds or kilograms.




MODEL 1099™ CHEMICAL PROCESS CONTROLLER


FEATURES
  • NEMA 4x, UL approved enclosure
  • One to four independent channels
  • Two displays: Large LED display (.56"h) to show numeric result; 2 line, 16 character LCD display, backlit for easy reading to display menu and functions
  • Keyboard is arranged with 20 keys: 10 function, and 10 numeric keys
  • Keyboard and display provide audible, tactile and visual confirmation
  • Power sources from 85 VAC to 265 VAC
  • Power and input/output cables are sealed with plastic strain relief

MENU OPTIONS:

  • Gross weight - Total including container for each or all scales
  • Net weight - Of contents for each or all scales
  • Daily usage - Amount used during previous day
  • Amount used - Amount used since container was full
  • Days until empty - At current feed rate
  • Feed rate - Current rate in pounds, kilograms, gallons, or liters, with a range of 99,999 maximum reading

The Scaletron™ Model 1099™ Chemical Process Controller is central to the Scaletron Industries, Ltd. “Total Electronic System” which provides more accurate scale weights and automated use reports of chemicals used in the treatment of municipal drinking and industrial water, as well as municipal and industrial wastewater treatment.

The Model 1099™ used in conjunction with Scaletron's electronic base scales will reduce or eliminate most of the problems associated with the use of water and wastewater treatment chemicals such as: under dosing, over dosing, need for round-the-clock monitoring, accurate record keeping requirements, worker safety, environmental concerns, and equipment deterioration due to a highly corrosive environment.

The Model 1099™ Chemical Process Controller provides an automated way of controlling the batching process of chemicals used to prepare day-tanks, such as pumping several chemicals into a tank mounted on a scale base and mixing them together prior to dosing the desired chemical solution into the water system.

Our Model 1099™ can operate 4 scales with 4 individual channels. It will monitor up to 4 groups of scales with each group using one channel for a total of 16 load cells. It is also capable of operating different types of scales (dual cylinder, drum, platform, ton) used in the same system provided that the number of load cells does not exceed 16.

The Model 1099™ comes standard with one loop powered 4-20 mA circuit for channel #1. Three additional circuits are available for channels #2 thru #4. A maximum of four set points can be assigned among the four channels.

The Model 1099™ will send all reporting information to a printer, recorder, or scada system and can provide permanent records of daily usage, amount used, days till empty, and the feed rate of four different scale bases, thereby preventing the system from running out of chemicals when the plant is unmanned. Set-point relays to control transfer and metering pumps can prevent over filling or under filling of day tanks. The unit can automatically regulate chemicals going into a tank, which is generally a safer and more accurate mode of operation. This reduces worker exposure and possible contact with chemicals.
