TON CYLINDER SCALES

For Weighing Corrosive Materials Capacities to 12,000 lbs. Digital Single & Multiple Cylinder Models Low Profile Platform Design Corrosion Resistant Construction 5 Year Warranty

Scaletron's Ton Cylinder Scales are designed to accurately measure the weight of liquefied chlorine, sulfur dioxide and other liquefied gases or liquids packaged in cylinders.

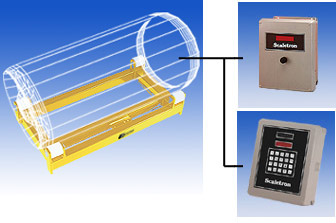

MODEL 3001™ - 3006™ DIGITAL TON CYLINDER SCALE Solid - state operation by NTEP stainless steel temperature compensated strain gauge transducer Electronics housed in NEMA 4x, UL approved enclosure to provide protection from acids Low profile design increases safety and ease of cylinder handling LED display with easy readability to 1 pound (kilogram) High accuracy of ± 0.5% of capacity Readout in pounds or kilograms Indicator can be remote mounted up to 200 feet (61 meters) away Rugged steel construction with corrosion resistant finish All moving parts stainless steel construction Solid UHMW rollers Measures weight of liquefied chlorine, sulfur dioxide, ammonia, hydrogen chloride, carbon dioxide or other liquid or liquefied gas Self-locking knob for adjusting tare weight 1 - 6 bases can be summed together into one indicator Model 1099™ Chemical Process Controller as optional indicator to create The Total Electronic SystemSM The Model 3001™ thru 3006™ with standard 4½ digit indicator plugs into a wall source and operates on 120 or 240 VAC, 50/60 Hz. As the gas in each cylinder is used, the LED display will continuously indicate the amount of gas remaining. An adjustable, self-locking knob is provided so the operator can pre-set the tare weight. Capacity range for platform is as follows: Gross, 4000 lbs. (1814.4kg): Tare, 2000 lbs. (907.2 kg); and Product, 2000 lbs. (907.2 kg). For operation, the scale employs a NTEP stainless steel temperature compensated strain gauge transducer. It offers high accuracy of ± 0.5%. The Model 3001™ thru 3006™ has sturdy three-point suspension and is built ruggedly for use in harsh environments. Construction is all steel, coated with a tough, caution yellow, dry powder polyester plastic finish to protect it from corrosion. Display electronics are housed in a NEMA 4x, UL approved enclosure. The Model 1099™ Chemical Process Controller is also available on this base, which allows the user to combine different bases to create a customized Total Electronic SystemSM. Please contact the factory for literature on the Model 1099™ Chemical Process Controller. All of our indicators can be calibrated in pounds or kilograms. MODEL 3000LB™ TON CYLINDER LIFTING BAR The Model 3000LB™ Ton Cylinder Lifting Bar is made of 5" channel 9.0 lbs. per foot and has heavy duty hooks cut from 1" plate. There are two styles available: one, as pictured, has a loop made of 1" round stock for use in an area with ample head room. Our second style has a pin centered on the lift bar for use in areas with less head room. Lift bars are caution yellow dry powder polyester plastic coated. MODEL 3000ST™ TON CYLINDER STORAGE TRUNNIONS The Model 3000ST™ Ton Cylinder Storage Trunnions are made of 1/2" plate with stainless steel axles and solid 3" UHMW polyethylene rollers with holes in the plate for anchoring. These storage trunnions are caution yellow dry powder polyester plastic coated. MODEL 3000TW™ TON CYLINDER TURNING WRENCH The Model 3000TW™ Ton Cylinder Turning Wrench is made of 1/2" flat bar with a 24" long by 1" square tube handle. Turning wrench is caution yellow dry powder polyester plastic coated. MODEL 1099™ CHEMICAL PROCESS CONTROLLER FEATURES NEMA 4x, UL approved enclosure One to four independent channels Two displays: Large LED display (.56"h) to show numeric result; 2 line, 16 character LCD display, backlit for easy reading to display menu and functions Keyboard is arranged with 20 keys: 10 function, and 10 numeric keys Keyboard and display provide audible, tactile and visual confirmation Power sources from 85 VAC to 265 VAC Power and input/output cables are sealed with plastic strain relief MENU OPTIONS: Gross weight - Total including container for each or all scales Net weight - Of contents for each or all scales Daily usage - Amount used during previous day Amount used - Amount used since container was full Days until empty - At current feed rate Feed rate - Current rate in pounds, kilograms, gallons, or liters, with a range of 99,999 maximum reading The Scaletron™ Model 1099™ Chemical Process Controller is central to the Scaletron Industries, Ltd. “Total Electronic System” which provides more accurate scale weights and automated use reports of chemicals used in the treatment of municipal drinking and industrial water, as well as municipal and industrial wastewater treatment. The Model 1099™ used in conjunction with Scaletron's electronic base scales will reduce or eliminate most of the problems associated with the use of water and wastewater treatment chemicals such as: under dosing, over dosing, need for round-the-clock monitoring, accurate record keeping requirements, worker safety, environmental concerns, and equipment deterioration due to a highly corrosive environment. The Model 1099™ Chemical Process Controller provides an automated way of controlling the batching process of chemicals used to prepare day-tanks, such as pumping several chemicals into a tank mounted on a scale base and mixing them together prior to dosing the desired chemical solution into the water system. Our Model 1099™ can operate 4 scales with 4 individual channels. It will monitor up to 4 groups of scales with each group using one channel for a total of 16 load cells. It is also capable of operating different types of scales (dual cylinder, drum, platform, ton) used in the same system provided that the number of load cells does not exceed 16. The Model 1099™ comes standard with one loop powered 4-20 mA circuit for channel #1. Three additional circuits are available for channels #2 thru #4. A maximum of four set points can be assigned among the four channels. The Model 1099™ will send all reporting information to a printer, recorder, or scada system and can provide permanent records of daily usage, amount used, days till empty, and the feed rate of four different scale bases, thereby preventing the system from running out of chemicals when the plant is unmanned. Set-point relays to control transfer and metering pumps can prevent over filling or under filling of day tanks. The unit can automatically regulate chemicals going into a tank, which is generally a safer and more accurate mode of operation. This reduces worker exposure and possible contact with chemicals. MODEL 3050™ TON CYLINDER CONVERSION KIT Solid - state operation by a NTEP stainless steel temperature compensated strain gauge transducer Electronics housed in NEMA 4x, UL approved enclosure to protect them from acids Low profile design to easily replace hydraulic load cells LED display with easy readability to 1 pound (kilogram) High accuracy of ± 0.5% of capacity Readout in pounds or kilograms Indicator can be remote mounted up to 200 feet (61 meters) away Rugged steel construction with corrosion resistant finish Self-locking knob for adjusting tare weight Model 1099™ Chemical Process Controller as optional indicator to create The Total Electronic SystemSM The Model 3050™ Conversion Kit plugs into a wall source and operates on 120 or 240 VAC, 50/60 Hz . As the gas in each cylinder is used, the LED display will continuously indicate the amount of gas remaining. An adjustable, self-locking knob is provided so the operator can pre-set the tare weight. Kits are available for both single and dual ton applications. For operation, the Conversion Kit employs a NTEP stainless steel temperature compensated, strain gauge transducer. It offers high accuracy of ± 0.5%. Construction is all steel, coated with a tough, dry powder polyester plastic finish to protect it from corrosion. Display electronics are housed in a NEMA 4x, UL approved enclosure. The Model 1099™ Chemical Process Controller is also available on this base, which allows the user to combine different bases to create a customized Total Electronic SystemSM. Please contact the factory for literature on the Model 1099™ Chemical Process Controller. All of our indicators can be calibrated in pounds or kilograms.
