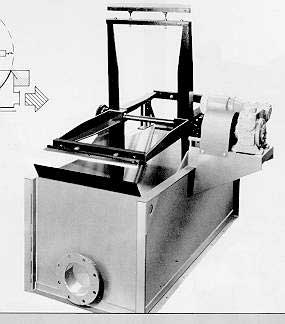

A self-cleaning screen for industrial effluents where no fall is available
	Maximum inlet size - 250 (9") flanged or socket type SCREEN - Perforated stainless steel	INLET ADAPTER - Can be designed to suit most types on inlet BRUSHES - Nylon or polypropylene
	TYPE A L WEIGHT CAPACITY C4 17" 43" 1,875# 60 gpm 3,600 gph C8 32" 58" 2,205# 120 gpm 7,200 gph C12 47" 74" 2,450# 192 gpm 11,520 gph C16 62" 88" 2,690# 258 gpm 15,600 gph

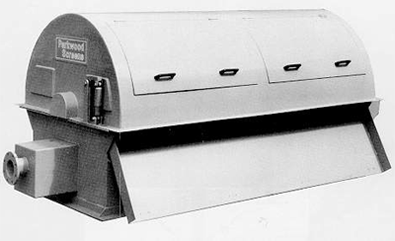

OR-TEC Brush Screen Type "D"

	A simple self-cleaning screen for industrial effluents, sewage works, recirculation waters, feedwaters, etc.
DRIVE - Preferred opposite inlet INLET ADAPTER - Can be designed to suit most types of inlet SCREEN - Perforated stainless steel. Available with 5, 3, 1.5, .75 or .5 mm dia. holes. BRUSHES - Nylon or Polypropylene		Maximum inlet size - D4 to D24 inc. 200 (9") flanged or socket type. D30 to D90 inc. 500 (20") flanged or socket type.

TYPE

A

B

C

D

E

RAD

L

W

H

WEIGHT

CAPACITY

D90

182"

74"

5"

31"

28"

38"

216"

81"

81"

5,600#

1,500 g/m

90,000 g/ht

D75

152"

74"

5"

31"

28"

38"

186"

81"

81"

4,475#

1,236 g/m

74,400 g/ht

D60

122"

74"

5"

31"

24"

38"

152"

81"

81"

3,640#

984 g/m

58,800 g/ht

D45

92"

74"

5"

31"

24"

38"

122"

81"

81"

3,210#

744 g/m

44,400 g/ht

D30

62"

74"

5"

31"

24"

38"

92"

81"

81"

2,690#

492 g/m

30,000 g/ht

D24

92"

40"

3"

17"

18"

22"

116"

47"

46"

1,215#

390 g/m

24,000 g/ht

D16

62"

40"

3"

17"

18"

22"

86"

47"

46"

950#

258 g/m

15,600 g/ht

D12

47"

40"

3"

17"

18"

22"

71"

47"

46"

840#

192 g/m

11,520 g/ht

D8

32"

40"

3"

17"

18"

22"

56"

47"

46"

730#

120 g/m

7,200 g/ht

D4

17"

40"

3"

17"

18"

22"

41"

47"

46"

565#

60 g/m

3,600 g/ht

These capacities are an approximate guide only and will vary depending on the proportion of solids to liquid in the effluent.
