Our chlorination systems represent the industry standard for solid chlorine disinfection. Designed specifically to use our calcium hypochlorite tablets and feeders, we have combined experience and performance to deliver a safe, dependable alternative to gas or bleach as a means to purify water. Utilizing technology that has been in use since 1982, our system benefits from experience gained in over two thousand installations representing satisfied customers in virtually every segment of water treatment.

NSF, state, and local approvals, assure our customers of equipment and chemistry that can meet or exceed regulatory and local standards for consistent, certified performance.

Solid chlorine stands alone as the safest form of chlorine disinfection. Requiring only minimal safety equipment for handling, users can breathe easy knowing our tablets are safe for both people and the environment. The elimination of costly scrubbers, containment, or hazard response capability, guarantees lower initial costs and reduced operating expense.

"Innovation pure and simple," best describes our chlorinators. Our engineers strive to deliver equipment that reflects not only leading edge technology but operating and maintenance that match today's industrial and municipal operating environment. Easy to use, easy to understand and easy to maintain ... a winning combination.

The Terminator System SINGLE CHLORINE TABLET CHAMBER UNIT — CAN HOLD UP TO 25 TABLETS. The Arden "Terminator" was designed as a simple, yet reliable, method of chlorination utilizing calcium hypochlorite tablets. How It Works Arden Industries incorporates the "Terminator" to work off of an injector venturi to inject the chlorine solution, rather than using chemical metering or centrifugal pumps which require considerable maintenance and cost. Water flow is precisely controlled over the tablets via a flowmeter and control valve which provides controlled erosion of the tablets. Arden Industries has designed a removable tablet stacking container which allows uniform positioning, without damage to the tablets. Drop-down tablet insertion is eliminated. DUAL CHLORINE TABLET CHAMBER UNIT — CAN HOLD UP TO 50 TABLETS Arden Industries has designed a unique built-in "dump valve." When the system is in operation, the dump valve maintains a precise water level over the tablet. When the system is turned off, the dump valve opens and all water is extracted from its tablet chamber. This ensures that all remaining tablets stay dry, thus preventing any additional erosion. The "Terminator" can be configured with any number of chambers and it can be downsized to hold a few tablets, or upsized to hold up to 25 tablets per chamber. A single, double, quad or more chambers can be provided, depending on your requirements. The "Terminator" can be provided as a flow-proportion, residual or compound loop control system. REMOVABLE TABLET STACKING CONTAINER WITH VENTURI INJECTOR Note: The "Terminator" can also be used with dechlorination tablets for water or wastewater dechlorination applications. Applications Municipal Water & Wastewater Systems Industrial Water & Wastewater Systems Cooling Tower Water Treatment Food Processing Water Treatment Agricultural Water Treatment Swimming Pool Water Treatment

MODEL 21-1-12-DV TABLE CHLORINATION SYSTEM CONSISTING OF THE FOLLOWING:
1 ea. CHLORINE TABLET CHAMBER WITH REMOVABLE TABLET STACKING CONTAINER (holds 12 tablets)
1 ea. AUTOMATIC DUMP VALVE ASSEMBLY
1 ea. SUPPLY WATER FLOWMETER WITH CONTROL VALVE (O-1 GPM)
1 ea. SUPPLY WATER PRESSURE GAUGE (0-100 psi)
1 ea. SUPPLY WATER INLET SOLENOID VALVE (1/2" size, 110 vac, 1 Ø, 60 Hz, N.C.)
1 ea. POLYPROPYLENE MOUNTING BASE WITH ALL INTERCONNECTING PIPING
1 ea. LIQUID INJECTOR/CHECK VALVE ASSEMBLY (3/4" size)


MODEL 21-1-25 TABLET CHLORINATION SYSTEM CONSISTING OF THE FOLLOWING:
1 ea. CHLORINE TABLET CHAMBER WITH REMOVABLE TABLET STACKING CONTAINER (holds 25 tablets)
1 ea. SUPPLY WATER FLOWMETER WITH CONTROL VALVE (0-2 GPM)
1 ea. SUPPLY WATER PRESSURE GAUGE (0-100 psi)
1 ea. SUPPLY WATER INLET SOLENOID VALVE (1/2" size, 110 vac,1 Ø, 60 Hz, N.C.)
1 ea. POLYPROPYLENE MOUNTING BASE WITH ALL INTERCONNECTING PIPING
1 ea. LIQUID INJECTOR/CHECK VALVE ASSEMBLY (3/4" size)


MODEL 21-2-25 TABLET CHLORINATION SYSTEM CONSISTING OF THE FOLLOWING:
2 ea. CHLORINE TABLET CHAMBERS WITH REMOVABLE TABLET STACKING CONTAINERS (holds 25 tablets per chamber 50 tablets total)
1 ea. SUPPLY WATER FLOWMETER WITH CONTROL VALVE (0-2 GPM)
1 ea. SUPPLY WATER PRESSURE GAUGE (0-100 psi)
1 ea. SUPPLY WATER INLET SOLENOID VALVE (1/2" size, 110 vac, 1 Ø, 60 Hz, N.C.)
1 ea. POLYPROPYLENE MOUNTING BASE WITH ALL INTERCONNECTING PIPING
1 ea. LIQUID INJECTOR/CHECK VALVE ASSEMBLY (3/4" size)


MODEL 21-4-100 TABLET CHLORINATION SYSTEM CONSISTING OF THE FOLLOWING:
4 ea. CHLORINE TABLET CHAMBERS WITH REMOVABLE TABLET STACKING CONTAINERS (holds 25 tablets per chamber 100 tablets total)
1 ea. SUPPLY WATER FLOWMETER WITH CONTROL VALVE (0-3.5 GPM)
1 ea. 25 GALLON CAPACITY STOARAGE TANK WITH TANK LEVEL CONTROL & CONTROL PANEL
1 ea. SUPPLY WATER PRESSURE GAUGE (0-100 psi)
1 ea. SUPPLY WATER INLET SOLENOID VALVE (1/2" size, 110 vac, 1 Ø, 60 Hz, N.C.)
1 ea. POLYPROPYLENE MOUNTING BASE WITH ALL INTERCONNECTING PIPING
1 ea. LIQUID INJECTOR/CHECK VALVE ASSEMBLY (3/4" size)


MODEL 21-6-150 TABLET CHLORINATION SYSTEM CONSISTING OF THE FOLLOWING:
6 ea. CHLORINE TABLET CHAMBERS WITH REMOVABLE TABLET STACKING CONTAINERS (holds 25 tablets per chamber 150 tablets total)
1 ea. SUPPLY WATER FLOWMETER WITH CONTROL VALVE (0-10 GPM)
1 ea. 50 GALLON CAPACITY STOARAGE TANK WITH TANK LEVEL CONTROL & CONTROL PANEL
1 ea. SUPPLY WATER PRESSURE GAUGE (0-100 psi)
1 ea. SUPPLY WATER INLET SOLENOID VALVE (1/2" size, 110 vac,1 Ø, 60 Hz, N.C.)
1 ea. POLYPROPYLENE MOUNTING BASE WITH ALL INTERCONNECTING PIPING
1 ea. LIQUID INJECTOR/CHECK VALVE ASSEMBLY (3/4" size)


OPTIONAL EQUIPMENT
PRESSURE REDUCING VALVE (for water supply to chlorinator if pressure exceeds 100 psi)
INJECTOR BOOSTER PUMP
INJECTION QUILL
CHLORINE RESIDUAL ANALYZERS
CHLORINE AUTOMATIC SERVO-CONTROL VALVES
FLOW PROPORTIONING & CHLORINE RESIDUAL CONTROL SYSTEMS

TABLET CHLORINATION SYSTEM DATA FOR SIZING UNIT
TO MAINTAIN 1 PPM FREE CHLORINE RESIDUAL*



SYSTEM OR WELL FLOW RATE-GPM	LBS. OF Cl2/hr.	TABLET USAGE PER HOUR	TABLET USAGE PER DAY	FLOW REQUIRED TO TABLET IN GPM	TERMINATOR MODEL NUMBER
100	.05	1/8 TAB	3	3/4	USE MODEL #21-1-12-DV SINGLE CHAMBER WITH DUMP VALVE
150	.075	3/16 TAB	4 1/2	7/8
200	.10	1/4 TAB	6	1	USE MODEL #21-1-25 SINGLE CHAMBER WITHOUT DUMP VALVE (UNIT HOLDS 25 TABLETS)
250	.125	5/16 TAB	7 1/2	1 1/8
300	.15	3/8 TAB	9	1 1/4
350	.175	7/16 TAB	10 1/2	1 3/8
400	.20	1/2 TAB	12	1 1/2	USE MODEL #21-2-50 DUAL CHAMBER WITHOUT DUMP VALVE (UNIT HOLDS 25 TABS/CHAMBER)
450	.225	9/16 TAB	13 1/2	1 3/8
500	.250	5/8 TAB	15	1 3/4
600	.30	3/4 TAB	18	2	USE MODEL #21-4-100 FOUR CHAMBER UNIT WITH DAY TANK (25 GALLON CAPACITY) (UNIT HOLDS 25 TABS/CHAMBER)
700	.35	7/8 TAB	21	2 1/4
800	.40	1 TAB	24	2 1/2
900	.45	1 1/8 TAB	27	2 3/4
1000	.50	1 1/4 TAB	30	3.0
1500	.75	1 7/8 TAB	45	4 1/4	USE MODEL #21-6-150 SIX CHAMBER UNIT WITH DAY TANK (50 GALLON CAPACITY) (UNIT HOLDS 25 TABS/CHAMBER)
2000	1.00	2 1/2 TAB	60	6
2500	1.250	1 5/8 TAB	75	7 3/4



NOTE:
	*1 —	The above numbers are based on clean water with little or no chlorine demand.
	2 —	These model numbers and capacities are for standard units, additional sizes can be provided. (Consult factory for pricing.)
	3 —	These numbers are based on PPG 3" ACCU-TAB Si Tablets.



• Gas


  • Monitors, detectors, SCBA equipment and costly scrubbers will be required.
  • Handling cylinders and bottles is hazardous.
  • You risk a reportable incident when gas is released.
  • The costs of cylinder and bottle deposits, delivery and handling are high.
  • You must have specially trained and certified workers.
  • You must have an elaborate risk management plan for potential incidents.



• Bleach


  • Variable solution strength causes dosing problems.
  • Loss of potency due to time and temperature can increase feeding costs.
  • Corrosive fumes are emitted to the atmosphere and affect workers.
  • As the solution degrades over time, hazardous DBP are formed.
  • It is difficult and hazardous to handle 700 pound drums.
  • You will need a secondary containment system.
  • You are paying drum deposits and high freight costs.

• Features, Advantages and Benefits
  • Treat any size flow, well, or system with the precise chlorine residual.
  • Very high consistency of set delivery rate.
  • There are no drum deposits.
  • Tablets in their shipping containers have a five year shelf life.
  • Installation is easy, and the control function is simple and fail safe.
  • Our system is quite dependable, and built from durable materials.
  • No gas is generated. No containment is required.
  • This is the safest and simplest practical disinfection system for your supply.

You can replace gaseous chlorine or sodium hypochlorite in any size application, well, water or wastewater plant with our tablet feeder. From 40 gpm to 10+ MGD, there are no flow restrictions. Our units can hold from 15 to 1200 pounds of tablets. Our units have a small foot print, 8 square feet, and weigh only 75 pounds.

Our tablet feeders can be sited in remote locations, industrial operations, water improvement districts, in residential areas, large and small wastewater plants, food plant flume spray water disinfection, cooling water systems, anywhere you would have planned to apply gas.

If the concerns of the health and safety regulators, your insurance carrier, the extra precautions which must be taken to apply gas, have all made the application of gas a more problematic and hazardous task, consider the tablet alternative. Call Tramfloc, Inc. We can help.

Build a Breath-Taking Waterfall You can Build a Beautiful pond and Waterfall all by Yourself, by studying and copying nature.	How Safe is Your Water? Drinking Water Guide for Homeowners, Realtors and Home Inspectors.	Home Water Delivery 1st month of service is FREE and get 3 FREE 5-gallon bottles when you sign up.	Stop Allergies in 5 days! All Natural Cure for stopping your allergies, I got rid of mine naturally

To determine the correct system for your application, some specific information is required:

What form of chlorination is used now? ___ Gas  ___ Liquid Bleach  ___ Granular

Source water temperature ______          ___ Other (specify: _________________________)

Is chlorination performed ___ intermittently or ___ continuously?

What is the current consumption? ______ LBS or GALS/DAY

What is the system pressure to be treated?________________ PSI

What is the system flow rate to be treated?______________ GPM

What is the final desired chlorine concentration?__________ PPM


NOW FOR SOME SIMPLE MATH







 _______ System Flow Rate (GPM)





 x _______ PPM Chlorine (Residual + Demand)



 x 0.0005  Conversion Factor



  _______ = LBS/HR Tablets Required

Until not too long ago, those seeking water treatment for small applications were reduced to two options, chlorine gas and bleach. Meanwhile, larger users always had the alternative of table chlorination methods. Now smaller users are offered the new system that provides the same benefits only previously available on a larger scale.

Small water treatments users such as resorts, mobile home villages, towns and community parks have traditionally relied on either chlorine gas or sodium hypoclorite as a disinfectant for both their potable and wastewater systems. When carefully managed, both methods can be effective. However, they each have issues of safety, maintenance and efficiency that continue to make them poorly suited for the small volume user. While larger users avoid the liability of chlorine gas and the inefficiencies of sodium hypochlorite by switching to tablet chlorination systems, those with lower water flows have wondered when such systems will be available. That time has arrived.

A new, advanced tablet disinfection system brings performance that has proven itself very successfully on large scale and smaller users. Until now, the leading tablet technology required site specific custom engineering for every application. However, this new concept, which features a simple "water and power up" design, requires no custom engineering. A single system has the ability to cover a broad range of chlorine demand, treatment volume and operating conditions. This functional flexibility makes the tablet chlorinator useful for most disinfection applications including rural, county and city water supplies, food and beverage processing, meat processing, cooling tower biocontrol, wastewater and more. Our tablet system is ideal for anyone with a need to safely chlorinate water flows of 50-to-2,000 gallons per minute (gpm). Most importantly, the technology is being scaled down even more, which means it can be configured to serve users such as churches, schools, restaurants and even homeowners that utilize individual wells at flow rates less than 50 gpm.

How It Works

Our technology guides and controls the dilution water to more effectively regulate and monitor the tablet erosion process. A magnetic stirring bar is installed to create a powerful vortex in a small water chamber. The vortex creates positive and negative pressures within the chamber allowing for controlled recirculation of the solution generation process. This means that our specially configured vortex continually blends tablets and water to mix the right solution strength, and since the small batches of solution are generated on an "as needed" basis, the system always delivers consistent chemistry. In comparison, since sodium hypoclorite can lose almost half of its strength in 10 days, it's not hard to see how maintaining consistent chlorine residuals in fractions of 1 part per million (PPM) is almost impossible without constant adjustments of the metering system.

Our chlorinating systems are designed to eliminate the costly precautions, risks and hazards you face with gas and bleach. Our chlorinating system lets you breathe easier in dealing with chlorination. The chlorinating tablets are easy to handle, and are less corrosive to piping and electrical systems. No more gas cylinders to leak ... no more bleach drums to spill. Process safety management plans are far easier to prepare and implement.

With our chlorinators, you achieve a level of safety for your personnel - and your entire operation - you cannot achieve with gas or bleach.

Accurate chlorine delivery that's automatic and dependable We know that modern operations demand an efficient, dependable, highly accurate chlorinating system - and we designed our systems to have those exact qualities. Our chlorinating tablets maintain their specified strength during normal storage and use. And our patented chlorinating systems produce a constant and predictable level of chlorine, with minimal operator adjustment. No gas to escape, no bleach that loses potency, no constant maintenance with pumps and pipes. Just a chlorinating system that does its job, dependably and accurately, day in ... day out, safely. Our patented chlorinators simplify the chlorinating process Incoming clean water contacts only the bottom surface of the 3-Inch calcium hypochlorite tablets in the chlorinator. The tablets erode at a consistent rate, releasing a controlled amount of chlorine into the water flow. The higher the water flow, the more chlorine that is delivered. Treated water from the chlorinator then combines with unchlorinated water, achieving a regulated level of available chlorine (AvCl) to meet your operational requirements. We have a chlorinator for just about every requirement - from less than a pound a day to a few hundred pounds a day.

Quick conversions customized to meet your requirements

Our chlorinators feature a simple "hook-up/plug-in" installation that truly expedites conversion from your old system. Whether you require a simple gravity flow installation or injection into a pressure system, conversion is a quick and simple process. You can also draw on the expertise of our Technical Services, we are an authorized manufacturer of complete turnkey systems incorporating the tablet chlorinator. And, although accessories should be locally available, we are the authorized source - and stock - installation accessories such as flow meters, valves and fittings to meet your needs. Either way, you'll soon discover the conversion process to be like the chlorinators themselves - simple, efficient and safe.

• Plug-in unit

• Requires raw water inlet, chlorinated water outlet and electrical source

• We will design a system to meet all your requirements

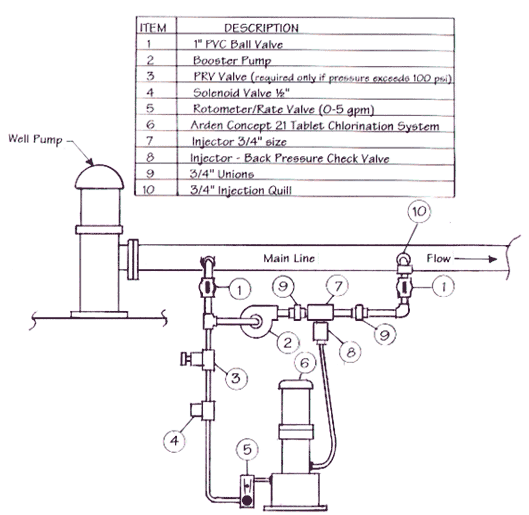

TYPICAL INSTALLATION FOR WELL SITE
